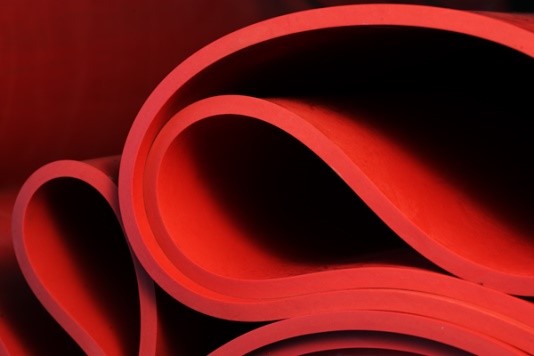

SPECIAL GRADE RUBBER


Made of premium grade natural rubber, having excellent wear & tear properties. Having high abrasion resistance properties particularly for wet applications such as slurry handling and can be used for any abrasion resistant applications.


  • Applications covered: Chute Lining, Tank Lining, Pipe Lining, Wear & Tear resistance, Corrosion resistance, Slurry handling
  • Industries Served: Mining & Quarry, Construction, Manufacturing

  • Standard technical specifications:
    Properties SGR 38
    Hardness (Shore A) 38 +/- 5
    Density (g/cm3) 0.99 +/- 0.05
    Tensile (PSI) 3300
    Elongation (% Min.) 700%
    Temperature range (°C) -25 to +70°C
    Color Red, Black, Pink
    Standard Width 4 feet 1.2 Meters
    Standard Length 33 feet 10 Meters
  • Notes:
    • Can be supplied in customized specifications as per the requirement.
    • One side and OR both side smooth, sanded and fabric finish can be supplied.

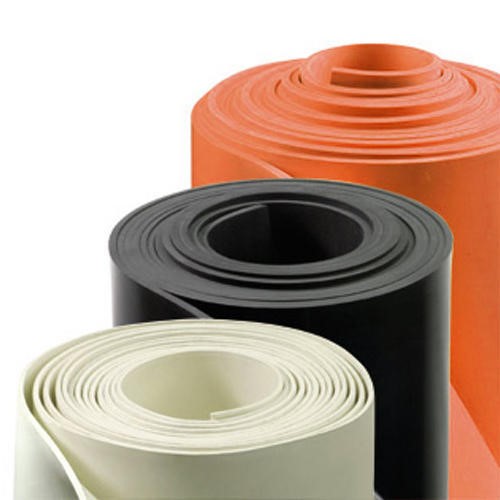

GUM RUBBER SHEETS


The high abrasion resistance rubber is an unmatched choice for wear, tear and abrasion resistance. It’s made of high grade natural rubber compound and can also be supplied with Neoprene bonding layer which provides better adhesion properties.


  • Applications Covered: Wear & Tear resistance, Corrosion resistance, Slurry handling
  • Industries Served: Mining & Quarry, , Construction, Manufacturing

  • Standard Technical Specifications:
    Properties GR 40
    Hardness (Shore A) 40 +/- 5
    Density (g/cm3) 1.1 +/- 0.05
    Tensile (PSI) 2200
    Elongation (% Min.) 450%
    Temperature range (°C) -25 to +70°C
    Color Tan, Orange, Black
    Standard Width 4 feet 1.2 Meters
    Standard Length 33 feet 10 Meters
  • Notes:
    • Can be supplied in customized specifications as per the requirement
    • One side and OR both side smooth and fabric finish can be supplied.

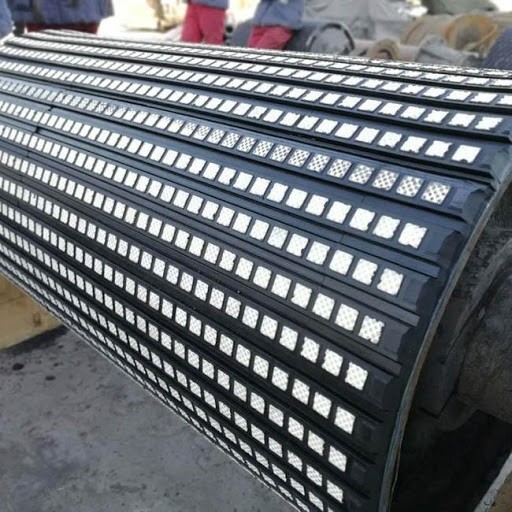

CERAMIC LAGGING SHEETS


With more than 80-85% tile coverage, the ceramic lagging is the tested and most reliable remedy for the various problems the belts often encounter. The major problem is the Slippage, which in return may cause a heavy break-down and thus affecting the overall function of the respective factory. It is generally used where the performance of rubber lagging is limited. OUR ceramic lagging has excellent outcome in various applications – Dry performance, Wet performance, Wear life or Ease of installation for that matter. We also supply FRAS pulley lagging for special applications.

Benefits of Ceramic Lagging:
  • Easy to install
  • Excellent adhesion: Rubber-to-ceramic-to-rubber-to-rubber.
  • Suitable for all pulleys
  • Best wear resistant properties
  • Outstanding coefficient of friction as compared to rubber lagging.
  • Ceramic tiles with dimples for a better traction over pulley.
  • Suitable for all pulley High performance in High-tension belts.

  • Width Can be provided in various strips from 385mm to 500mm
    Length Can be supplied in continuous length from 5 to 10 meters

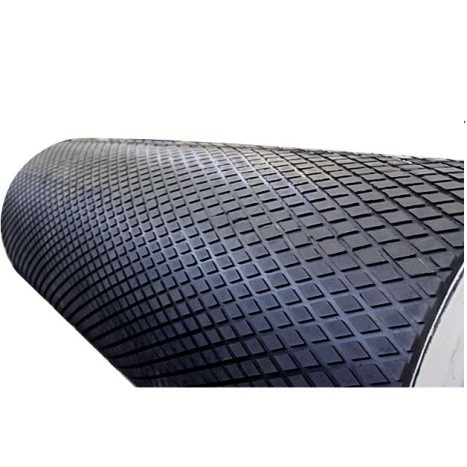

PULLEY LAGGING SHEETS


Diamond lagging rubber sheets are used to eliminate belt slippage, increase diamond life, improve water shedding and boost productivity. Lagging is often applied in order to extend the life of the shell by providing a replaceable wearing surface or to improve the friction between the belt and the Diamond. Notably drive Diamonds


  • Applications covered: To improve production, Avoid Slippage
  • Industries Served: Mining & Quarry, Construction, Manufacturing, Food & Drink

  • Standard technical specifications:
    Properties PL 65
    Hardness (Shore A) 65 +/- 5
    Density (g/cm3) 1.15 +/- 0.05
    Tensile (PSI) 1500
    Elongation (% Min.) 400%
    Temperature range (°C) -25 to +70°C
    Thickness (MM) Minimum 8
    Color Black
    Design Diamond and Square
    Standard Width 4.6 feet 1.4 Meters
    Standard Length 33 feet 10 Meters
  • Notes:
    • Can be supplied in customized specifications as per the requirement.
